Supergrid for Renewables

Print-Qualität
Back to overview

Go to the next slide,

to the previous slide

Click on the slide to get it in print quality within a new screen.

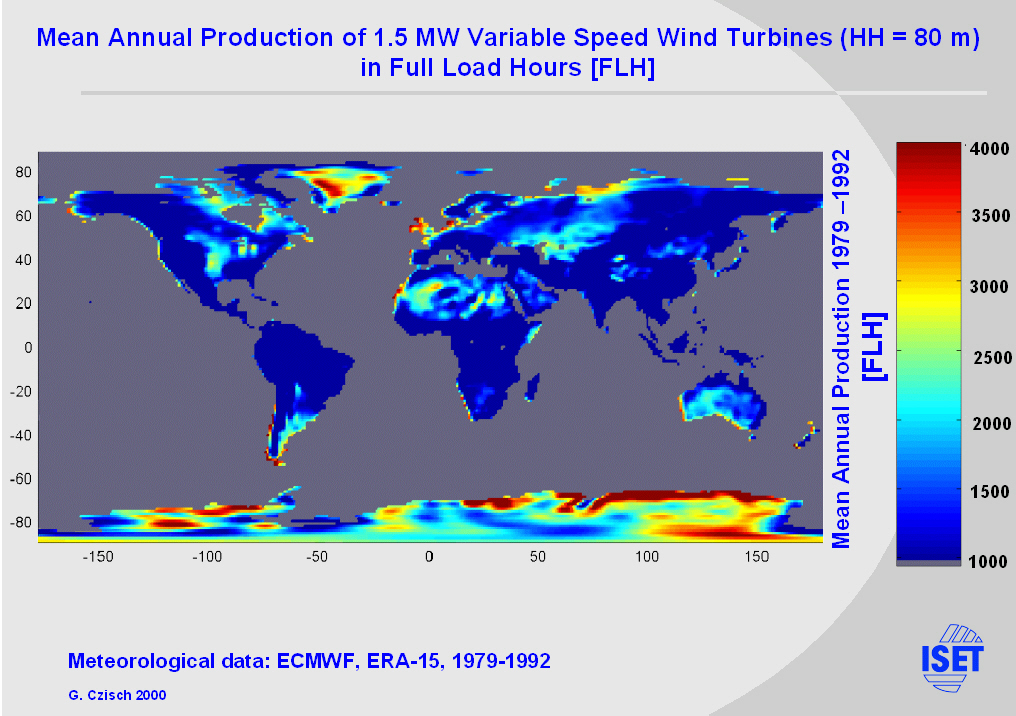

Here you can see the potential production of wind energy calculated from data of the European Centre for Medium Range Weather Forecast expressed in FLH. Europe itself has good wind conditions. But its use is limited by the high population density. In a belt 4000 to 5000 km away from Kassel there are also very good wind conditions and in most of the areas the population density is 2 orders of magnitude smaller than for example in Germany.
